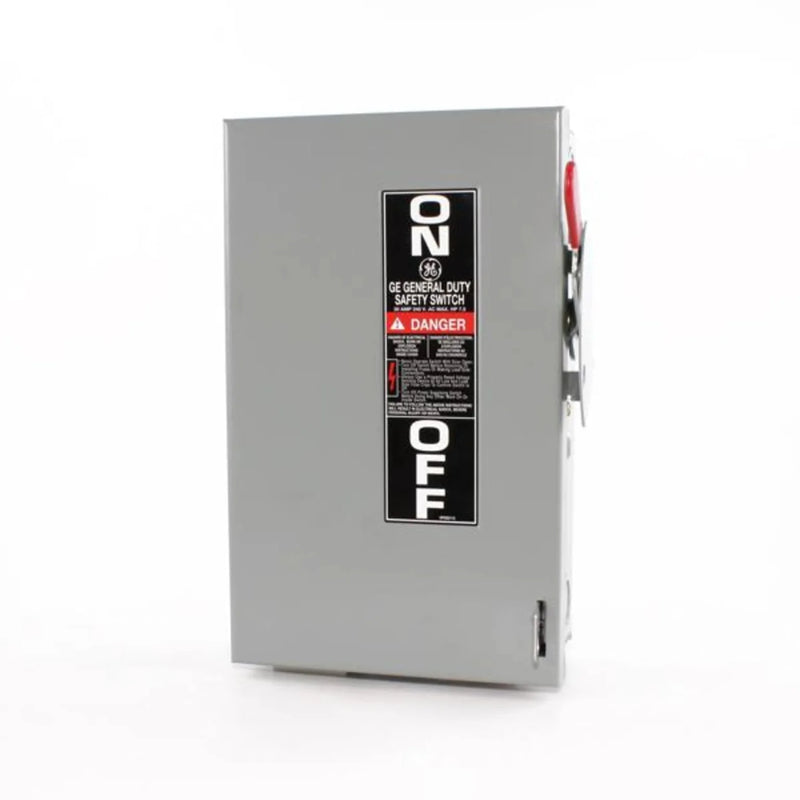

GE 30A TG4321R Outdoor Safety Switch
ID EQ215 TG4321R
When it comes to getting the job done right, you can count on safety switches from ABB. ABB offers a wide variety of general duty switches for residential and light commercial purposes, while the extensive line of heavy-duty switches is best suited for commercial and industrial applications. For the toughest industrial environments — such as cement foundries, steel mills and processing plants — dust-tight and stainless steel switches are available. We also offer a variety of double throw switches for emergency generators. No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 30A 3P GD N3R 240V FUSIBLE SW
|
Amperage |
30 A |
|
Poles |
3 |
|
Wires |
4 |
|
Fusing |
Fusible |
|
Enclosure |
NEMA 3R (Outdoor) |
|
Wire Range (Cu/Al) |
12-8 AL |
|
240 Vac, NEC Std, 1-ph |
1.5 hp |
|
240 Vac, NEC Std, 3-ph |
3.0 hp |
|
240 Vac, Time Delay, 1-ph |
3.0 hp |
|
240 Vac, Time Delay, 3-ph |
7.5 hp |
|
250 Vdc |
5.0 hp |
|
GSA Compliance |
Yes |
Classifications
|
cUL Listed |
Yes |
|
UL Listed |
Yes |
Dimensions
|
Height |
9.8 in |
|
Depth |
3.3 in |
|
Width |
6.4 in |
|
Weight |
6.0 lb |
