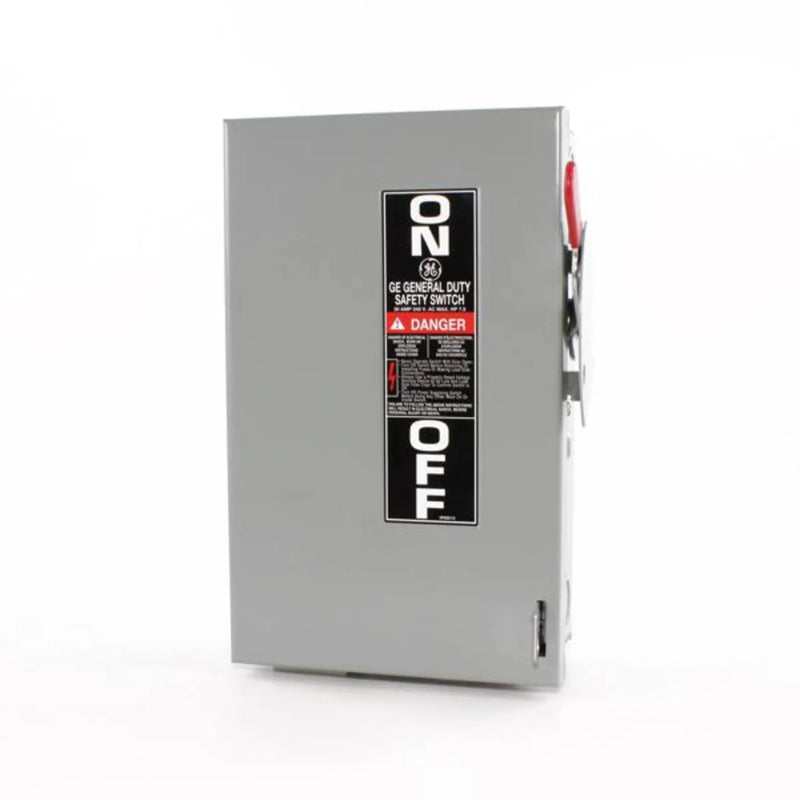

GE 60A TG4322R Outdoor Safety Switch

Original price $136.95 - Original price $136.95
Original price
$136.95
$136.95 - $136.95
Current price $136.95

ID EQ221   TG4322R

60A 3P GD N3R 240V FUSIBLE SW

When it comes to getting the job done right, you can count on safety switches from ABB. ABB offers a wide variety of general duty switches for residential and light commercial purposes, while the extensive line of heavy-duty switches is best suited for commercial and industrial applications. For the toughest industrial environments — such as cement foundries, steel mills and processing plants — dust-tight and stainless steel switches are available. We also offer a variety of double throw switches for emergency generators. No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 60A 3P GD N3R 240V FUSIBLE SW

Specifications

Amperage

60 A

Poles

3

Wires

4

Fusing

Fusible

Enclosure

NEMA 3R (Outdoor)

Wire Range (Cu/Al)

12-2

240 Vac, NEC Std, 1-ph

3.0 hp

240 Vac, NEC Std, 3-ph

7.5 hp

240 Vac, Time Delay, 1-ph

10.0 hp

240 Vac, Time Delay, 3-ph

15.0 hp

250 Vdc

10.0 hp

GSA Compliance

Yes

Classifications

cUL Listed

Yes

UL Listed

Yes

Dimensions

Height

13.7 in

Depth

3.9 in

Width

8.4 in

Weight

11.0 lb
