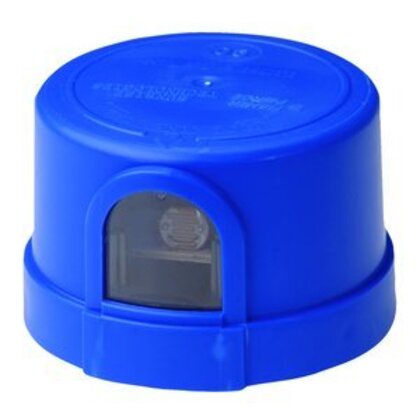

Electronic Photocell 105-285V
Original price
$6.95
-
Original price
$6.95
Original price
$6.95
$6.95
-
$6.95
Current price
$6.95
ID LFM112
Electronic Photocell 105-285V MW81
EC Series - Electronic with 2-5 second time delay. State-of-the-art electronic circuitry provides a tighter turn on/turn off ratio that minimizes luminaire burning hours and reduces energy costs. Meets ANSI C136.10 - 1988 Standards.
Utility Grade Locking Type EC Series
| Features | Description |
|---|---|
| Housing: | UV stabilized high impact polypropylene |
| Photocell: | Standard with silicon sensor. Also available with cadmium sulfide cell |
| Turn-on: | 1 foot-candles |
| Turn-on/ off Ratio: | 1:1.5 |
| Time Delay: | 5 seconds |
| Switch Type: | Single-pole, single-throw. Contact position at night normally closed |
| Temperature Range: | -40 Degree to 158 Degree F |
| Power Consumption: | .6 watts average at 120 VAC |
| Rated Life: | 5,000 operations minimum at rated load |
| Surge Protection: | 320 joule MOV (Metal Oxide Varistor) |
| Dimensions: | 3.07" diameter x 2.15" high |
* Replaces models 8660, 8672 and 8690
EC Series Specification Chart
| Precision Model | Voltage | Rating | Price |
|---|---|---|---|
| EC120-AP-TD | 120 VAC | 1800 VA | $14.85 |
| EC240-AP-TD | 208-277 VAC | 1800 VA | $15.50 |
| ECDV-AP-TD | 105-285 VAC | 1800 VA dual voltage | $16.10 |
Housings are color-coded per ansi spec: 120 V = Grey, 208-277 V = Maroon, 105-285 V = Blue, Photo-Timer = Green (ESC-124DS)
Additional Information
| Weight | 1 lb. |
|---|---|
| Dimensions | 7 x 7 x 4 in |
| EC Series | EC120-AP-TD, EC240-AP-TD, ECDV-AP-TD |
