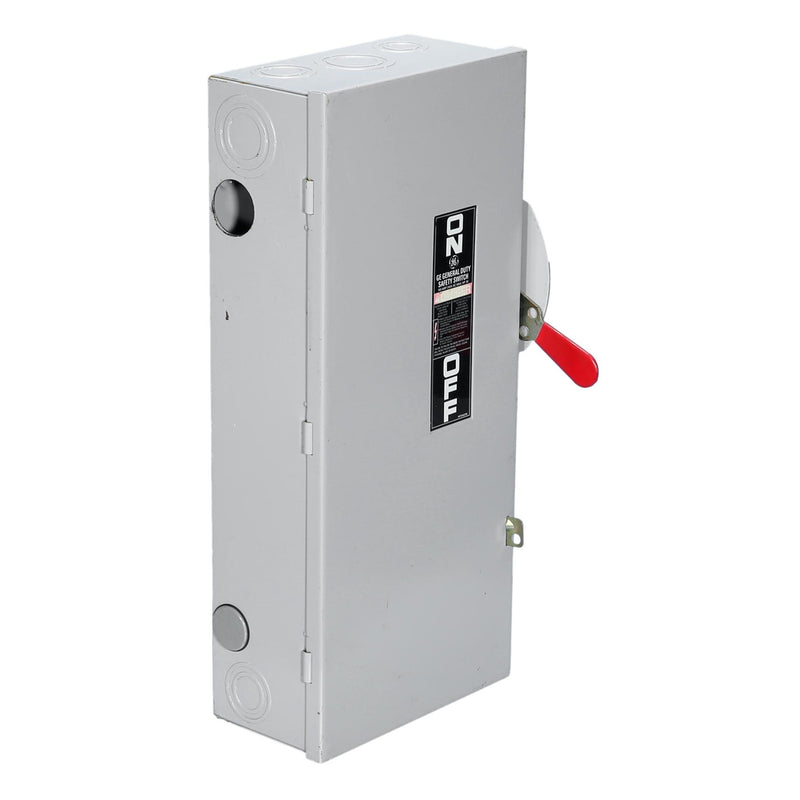

GE 100A TG4323 Indoor Safety Switch
ID EQ221.5 TG4323
100A 3P GD N1 240V FUSIBLE SW
When it comes to getting the job done right, you can count on safety switches from ABB. ABB offers a wide variety of general duty switches for residential and light commercial purposes, while the extensive line of heavy-duty switches is best suited for commercial and industrial applications. For the toughest industrial environments — such as cement foundries, steel mills and processing plants — dust-tight and stainless steel switches are available. We also offer a variety of double throw switches for emergency generators. No matter the application, we’ve got you covered with a rugged, reliable and easy-to-install Spec-Setter safety switch. 100A 3P GD N1 240V FUSIBLE SW
|
Amperage |
100 A |
|
Poles |
3 |
|
Wires |
4 |
|
Fusing |
Fusible |
|
Enclosure |
NEMA 1 (Indoor) |
|
Wire Range (Cu/Al) |
10-1/0 |
|
240 Vac, NEC Std, 1-ph |
7.5 |
|
240 Vac, NEC Std, 3-ph |
15 |
|
240 Vac, Time Delay, 1-ph |
15 |
|
240 Vac, Time Delay, 3-ph |
30 |
|
250 Vdc |
20 |
|
GSA Compliance |
Yes |
Classifications
|
cUL Listed |
Yes |
|
UL Listed |
Yes |
Dimensions
|
Height |
21.3 |
|
Depth |
4.9 |
|
Width |
9.4 |
|
Weight |
17 |
