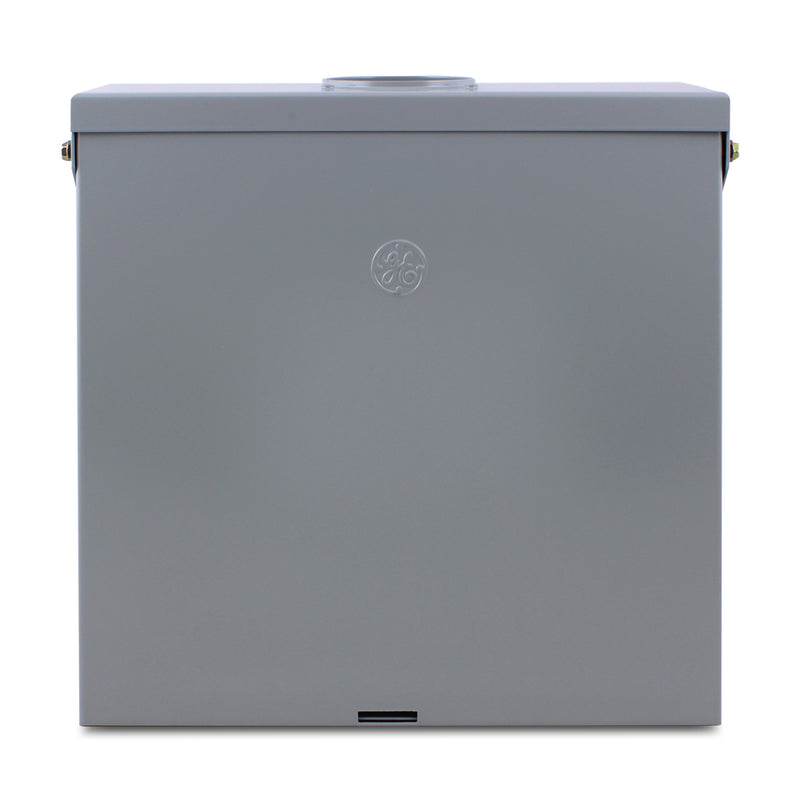

GE PowerMark Gold™ TLM812RCU 1-Phase Standard Main Lug Convertible Load Center

Original price $69.95 - Original price $69.95
Original price
$69.95 - $69.95
Current price $69.95

ID EQ113    TLM812RCU  Spec Sheet

 *Store Pickup ONLY* *Solo para recogido en tienda*

PowerMark Gold™ load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

GE PowerMark Gold™ Main Lug Convertible Load Center, 1-Phase Standard, 120/240 VAC, 125 A, 1 Pole, 65 kA Interrupt, 8 Circuits, THQL/THQP Breaker, 3-Wire Wiring Configuration, 8 Spaces, 6 to 1 AWG Wire, Plug-In Mount, NEMA 3R, NEMA R2A Enclosure Box, 11-1/8 in H x 11-1/4 in W x 3-1/4 in D

  • Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
  • 6 to 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
  • 60 to 70 deg C conductor rating
  • Main lug models field convertible to main breaker
  • Split neutrals extend the full length of the interior for ease of wiring
  • Entire main lug line converts easily to main breaker
  • Front packed in inner carton for added protection
  • Straight through main wiring
  • Compact box maintains optimum wire bending space
  • Copper bus bar for excellent conductivity
  • Top feed
  • 42, 24, 12, 16, 20, 40 - 1/2 in space
  • Ground kit for top entry TGK12 (order separately)
