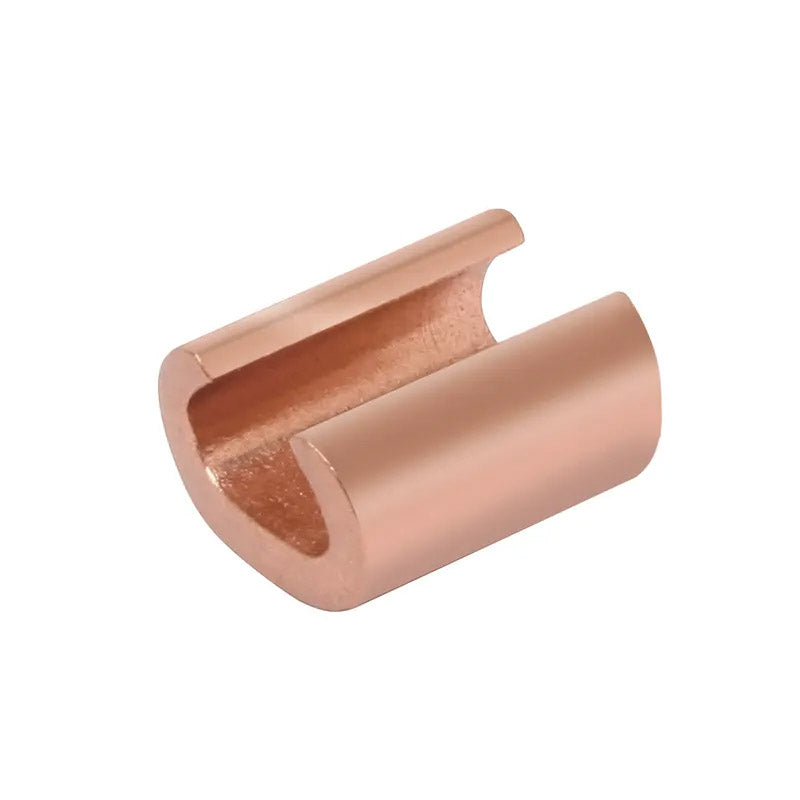

Burndy YC10C10 Copper C-Shape Connector

Burndy YC10C10 Copper C-Shape Connector

$0.45 - $0.45
$0.45
$0.45 - $0.45
$0.45

ID BU105       YC10C10     Spec Sheet

Range-taking compression tap connector made of pure copper. For Copper to Copper applications and used for deadending.

Features: Range-Taking Connector: Lowers Inventory Requirements, Compact Size: Easy To Tape And Insulate Connection, Manufactured From High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Economical: Provides Low Installed Cost, Not UL Listed, Conductor Size (run - Range): 12 AWG Solid - 10 AWG Stranded, Conductor Type: Run And Tap: Commercial Stranded Copper, Conductor Size (tap Range): 8 - 2 AWG Commercial Copper, Shape: C, Die Index: 238 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, Y45, Y46 Tool, U-238 Die, (1), MD6 Tool, W238 Die, (1), OUR840 Tool, W238 Die, (1)
