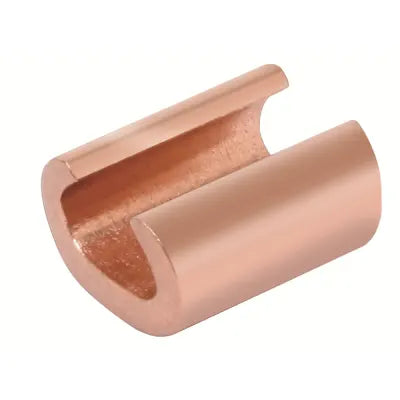

Burndy YC8C8 Copper C-Shape Connector

Original price $1.55 - Original price $1.55
Original price
$1.55
$1.55 - $1.55
Current price $1.55

ID BU110      YC8C8    Spec Sheet

CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 8 Sol. - 8 Str., Tap: 10 Sol. - 8 Str.

Features:

Range-Taking Connector: Lowers Inventory Requirements, Compact Size: Easy To Tape And Insulate Connection, Manufactured From High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Economical: Provides Low Installed Cost, 8A - Use CRIMPITS Accommodating 6 Stranded Copper, 6A - Use CRIMPITS Accommodating 4 Stranded Copper, 4A - Use CRIMPITS Accommodating 2 Stranded Copper, 2A - Use CRIMPITS Accommodating 1/0 And 2/0 Copper, Use PUADP-1 Adapter When Using U Dies In The Y46 HYPRESS, Tools, Die Set Catalog Number, And (number Of Crimps): MD6 Tool, W162 Die, (2), OUR840 Tool, W162 Die, (2), Y35, Y750, Y45, Y46 Tool, U162 Die, (1), Y46 Tool, U162 Die With PUADP-1 Adapter, (1), Die Index: 238 Element A, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Conductor Size (run - Range): 8 AWG, Conductor Size (tap Range): 6 - 2 AWG, Shape: C
